Description
Double power and mobility

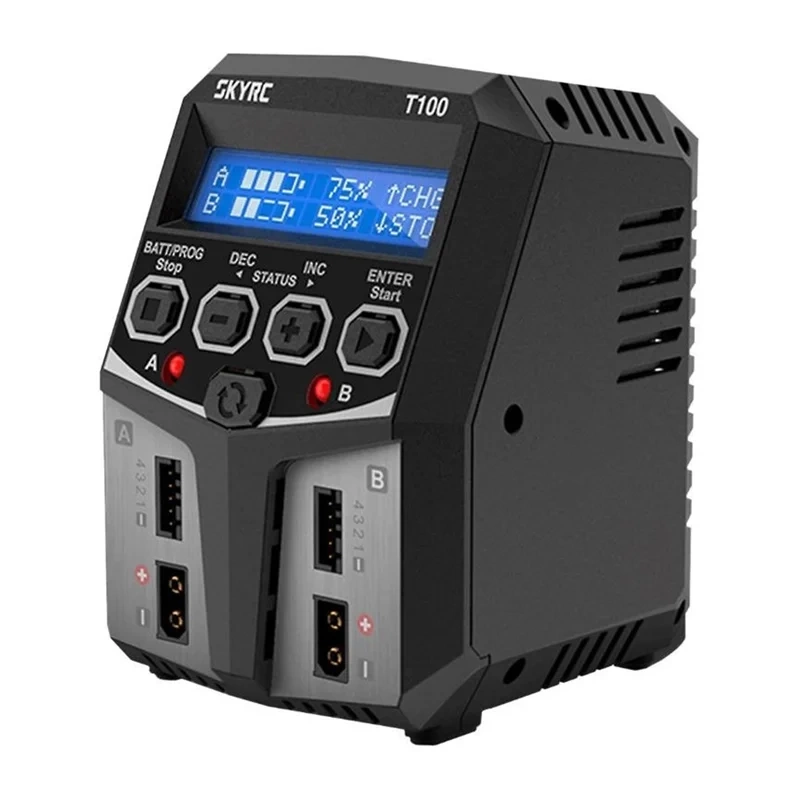

The SkyRC T100 is a dual-channel charger capable of charging or discharging all common battery types. Its intelligent design allows for seamless connection to the balancer ports and XT60 connector. The charger may be small in size, but it packs a powerful 100 watts to charge your battery at 5 amps. It also features AGM and cold-start charging modes for charging lead-acid and AGM batteries at low temperatures.
Two charging circuits
The T100 allows you to connect two batteries, which will then be intelligently and automatically charged to their maximum capacity. The batteries can have different specifications and be of completely different types.
Universal XT60 plug
The T100 charger integrates the XT60 connector, the most popular today, which allows for easy connection and charging of commonly used batteries. The XT60 connector prevents reverse polarity and ensures a very stable connection.
Greater accuracy in voltage reading
The charger's software has been highly optimized, allowing battery voltage to be displayed to three decimal places. With the T100, you'll get extremely accurate voltage readings during the charging process.
AGM and cold charging modes
AGM batteries are more robust and lighter than traditional lead-acid batteries. Although both battery types share the same key components, their chemical structure makes them very different. For this reason, the T100 introduces a specific charging mode for AGM batteries. Never charge AGM batteries with a conventional charger in Pb mode. Additionally, the T100 introduces a COLD mode optimized for low temperatures.
Included
- T200 Charger
- Power cord
| Power supply | AC 100-240V |
|---|---|
| Charging power | 100W (50W x 2) |
| Discharge power | 10W |
| Battery Type | LiPo/LiIon/LiFe/LiHV 2-4S, NiMH/NiCd 6-8S, Pb 6/12V |
| Battery capacity LiPo/LiIon/LiFe/LiHV 100-50000 mAh, NiMH/NiCd 100-50000 mAh, Pb 100-50000 mAh | Charging current |
| 0.1 – 5 A | LiPo Charging Voltage: |
| 4.18-4.25 V/cell, LiIon: 4.08-4.2 V/cell, LiFe: 3.58-3.7 V/cell LiHV: 4.25-4.5 V/cell, NiMH/NiCD – Delta-Peak Detection, Pb Normal: 2.4 V/cell, Pb AGM: 2.45 V, Pb Cold: 2.45 V | LiPo Discharge Voltage: |
| 3.0-3.3 V/cell, LiIon: 2.9-3.2 V/cell, LiFe: 2.6-2.9 V/cell LiHV: 3.1-3.4 V/cell, NiMH/NiCD – 0.1-1.1 V/cell | Balancer |
| 2-4S | Building materials |
| Plastic | Dimensions |
| 100 x 90 x 127 mm | Weight |
| 500 g | Timer |
| 1-170 minutes | Operating temperature |
| 0℃-40℃ | Display |
| 2×16 LCD with backlight | ports |
| XH 2-4S Balancer Socket, XT60 Female |
