Description

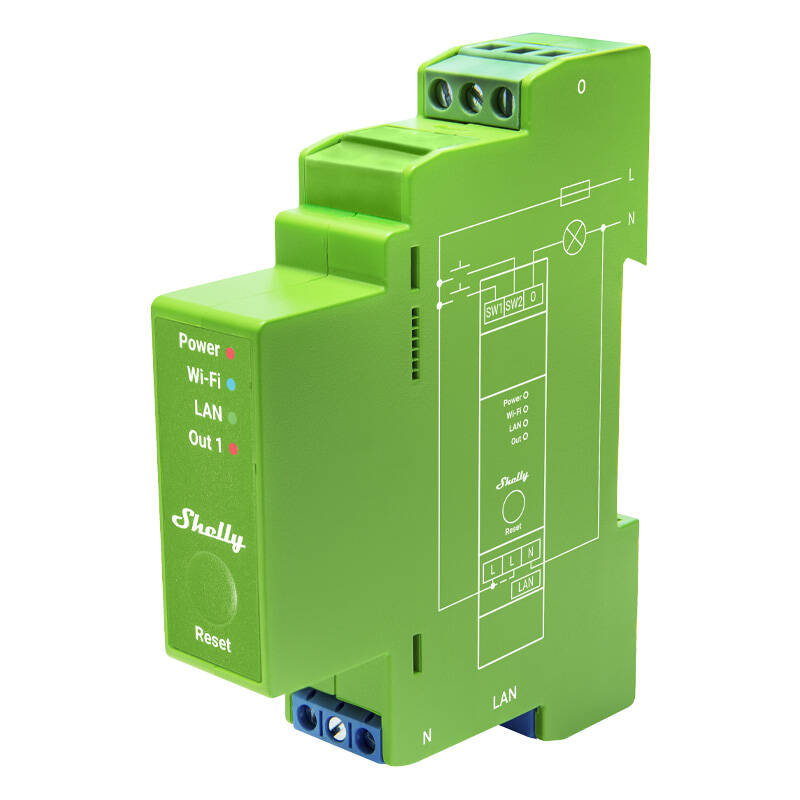

Shelly Pro Dimmer 1, 1-channel dimmer for DIN rail
Shelly Pro Dimmer 1 is a cutting-edge, DIN-rail-mountable single-channel dimmer designed for intelligent lighting management in your home or office. The device can operate independently over a local Wi-Fi network or be controlled by cloud-based home automation services. Additionally, an integrated web interface allows for remote access, control, and monitoring of the dimmer's status from anywhere in the world with an available internet connection. No additional hub is required for the product to function properly: it can be controlled locally or remotely, via Shelly Smart Control or a third-party system.
Functions and controls
The Shelly Pro 1 dimmer offers automatic brightness calibration, ensuring smooth adjustment of light intensity across the entire range. Users can choose control modes via switches or buttons, allowing full control of the device's functions regardless of the wall installation configuration. The product also supports night mode, which allows you to set a specific light intensity level after sunset. You can also adjust the dimming time from the 0% to the 100%, as well as the speed of brightness change by holding down the buttons.
Automation and programming
The Pro Dimmer 1 allows users to create weekly schedules, automating brightness adjustments and transition times, among other things. You can also set timers and automation scenarios. Customize your home lighting to suit your lifestyle: now your lights can automatically turn off when you go to bed and turn on when you wake up!
Applications and integrations
With the Shelly Pro Dimmer 1, you can easily adjust the lighting in a room to suit your needs. Create the perfect ambiance for any occasion! Additionally, the device is compatible with ecosystems like Amazon Alexa, Google Home, and Samsung SmartThings, so you can control it via your favorite app. The product also supports multiple connectivity options: it connects easily via Wi-Fi, Ethernet, and Bluetooth.
Safety and supported loads
Don't worry about the safety of your devices. The Pro Dimmer 1 is effectively protected against overheating, overvoltage, overload, and excessive power consumption, among other things. You also don't have to worry about compatibility issues. The product works perfectly with a variety of devices up to 200 watts, such as LED bulbs, traditional incandescent bulbs, halogen bulbs, and transformers with low-voltage bulbs.
| Producer | Shelly |
|---|---|
| Model | ProDimmer1 |
| Power supply | 110-240 V ~50/60 Hz |
| energy consumption | < 2 W |
| Maximum output power | 200 W |
| Wi-Fi connectivity | 802.11 b/g/n |
| Wi-Fi RF Bandwidth | 2401-2483 MHz |
| Maximum Wi-Fi RF power | < 20 dBm |
| Wi-Fi range | Up to 30 m indoors / up to 50 m outdoors |
| Bluetooth version | 4.2 |
| Bluetooth RF Band | 2400-2483.5 MHz |
| Maximum Bluetooth RF power | < 4 dBm |
| Bluetooth range | Up to 10 m indoors / up to 30 m outdoors |
| processor | ESP32-D0WDQ6 |
| Flash memory | 8 MB |
| Maximum number of programs | 20 |
| Operating temperature | From -20°C to 40°C |
| Operating ambient humidity | From 30% to 70% relative humidity |
| Material | Plastic |
| Dimensions | 94 x 19 x 69 mm |
| Weight | 75 g |
| Assembly | DIN rail |
| Compatibility | Amazon Alexa, Google Home, Samsung SmartThings |
